vacuum rake dryer
time:2023-03-22 10:10:06 Click:
205
Basic Info Model No.:0.5m-20m Vacuum Rake Dryer For Material Drying:L=8000 H=4500 W=2500 Additional Info Packaging:Wooden packing Productivity:1000 Brand:wst Transportation:Ocean Place of Origin:China Supply Ability:10000 Certificate:ISO900
Product description
Model No.: 0.5m³-20m³
Vacuum Rake Dryer For Material Drying: L=8000 H=4500 W=2500
Additional Info
Packaging: Wooden packing
Productivity: 1000
Brand: wst
Transportation: Ocean
Place of Origin: China
Supply Ability: 10000
Certificate: ISO9001 ASME PED
Product Description

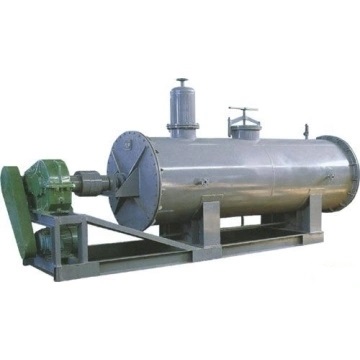

The utility model relates to a vacuum rake type drier, which is a conduction heating intermittent dryer. The cylindrical shell is provided with a heating jacket, and the horizontal shaft is provided with a rake stirrer with a shoulder. The rotation speed of the shaft for the 7--8r/min} axis can be reversing, reversing once every 5--8min, is to dry the material from the shell just above the middle to join, the material in the continuous rotation of the stirring tooth under indirect heating, divided by interest continuous gasification, vacuum pump suction. After ten hours of material wit dryness. There are two types: one is the jacket and the drive shaft are steam (or hot water); another jacket heating medium. The utility model is suitable for drying materials which are not resistant to high temperature and are easy to be oxidized at high temperature, materials with explosive danger and materials which must be recycled. The dried material may be a paste, paste, granule, powder, or fibrous. The advantages of the basin: strong adaptability, wide application; product quality; steam consumption is small, disadvantages: long drying time, low production.
Looking for ideal Stainless Steel Vacuum Rake Dryer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Carbon Steel Vacuum Rake Dryer are quality guaranteed. We are China Origin Factory of Rake Dryer. If you have any question, please feel free to contact us.
Product Categories : Drying Equipment
