30L High Quality Stainless Steel Fermenter Tank Series
time:2019-04-04 07:54:00 Click:
135
Additional Info Packaging:Seaworthy Packing Productivity:1000 Brand:WST Transportation:Ocean Place of Origin:Wuxi City,China Supply Ability:1000 Certificate:GB ASME PED Port:SHANGHAI Product Description 30L High Quality Stainless Steel Ferm
- Tel:86-0510-85957327 +8613961785511??
- Fax:86-0510-85957662??
Product description
Additional Info
Packaging: Seaworthy Packing
Productivity: 1000
Brand: WST
Transportation: Ocean
Place of Origin: Wuxi City,China
Supply Ability: 1000
Certificate: GB ASME PED
Port: SHANGHAI
Product Description
30L High Quality Stainless Steel Fermenter Tank Series, Fermentation equipment Tank type can be divided into two categories: one is anaerobic fermentation of the cone type (such as alcohol fermentation), and the other is gas Fermentation Tank (such as the standard type, Wu style, self-priming, etc.). This type of equipment, especially the standard tank type is the most common. I plant fermentation tank design series of drawings and data are standard cans. In the design of a variety of fermentation equipment, so that the design of tight structure, there is sufficient strength and service life, and strive to equipment less internal Accessories, smooth surface, note that there must be a good gas contact and steam stove vapor mixing performance, So that the material transfer, gas exchange effectively. There is sufficient heat exchange area to ensure that the fermentation can be carried out at the most appropriate temperature. Pay attention to the sealing performance of equipment to ensure sterilization.
The main components

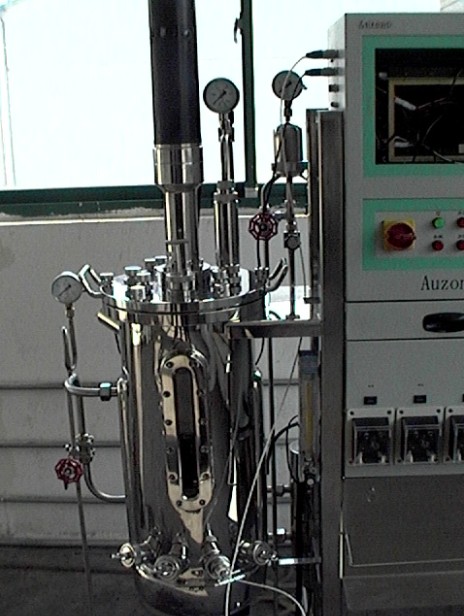

Tank: mainly used to cultivate a variety of fermentation bacteria, better sealing (to prevent bacterial contamination).
The tank has a stirring pulp, for the fermentation process of constant stirring, the bottom of the ventilation Sparger, used to pass the growth of bacteria required for air or oxygen, the top of the tank control sensor, the most commonly used PH electrode and DO electrode, used to monitor the fermentation process of fermentation pH and DO changes in the controller, used to display and control fermentation conditions and so on.
1.The machine WST Series Small fermenter ( seed tank,crystallizing tank) is widely applied in pharmacy, fine chemical engineering andbiological engineering industries. The tank body has interlayer andheat-insulating layer ( for heating, cooling or heat insulating) The tankbody,upper and lower closure heads(or taper) all adopt spinning R-angleprocessing. The internal wall of the tank has got mirror polishing with finishRa≤0.4μm.
2.It has no sanitary dead corner and its wholly-encloseddesign ensures that materials are always mixed and ferment at non-pollutionstate.
3.It is equipped with devices including air respirator,cleaning ball, sanitation inlet , viewing
mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemicalengineering and biological products is aseptic and untainted.
4.Fermentation tank adopts aseptic system which helps avoidmicroorganism pollution in the air and greatly extends quality warranty periodand purity of the products. We specially designed and installed asepticrespiratory air hole or aseptic normal-pressure fermentation system, which canfinish circulating heat-up and cooling through medium heat-up and cooling.Heat preservation adopts polyurethane blister or pearl cotton. External surfaceadopts sand grinding surface polishing treatment. All is in accordance with GMPstandard.
Looking for ideal Stainless Steel Fermenter Tank Series Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Fermenter Tank Series are quality guaranteed. We are China Origin Factory of 30L Fermenter Tank Series. If you have any question, please feel free to contact us.
Product Categories : Complete Set Of Equipment
Productivity: 1000
Brand: WST
Transportation: Ocean
Place of Origin: Wuxi City,China
Supply Ability: 1000
Certificate: GB ASME PED
Port: SHANGHAI
Product Description
30L High Quality Stainless Steel Fermenter Tank Series, Fermentation equipment Tank type can be divided into two categories: one is anaerobic fermentation of the cone type (such as alcohol fermentation), and the other is gas Fermentation Tank (such as the standard type, Wu style, self-priming, etc.). This type of equipment, especially the standard tank type is the most common. I plant fermentation tank design series of drawings and data are standard cans. In the design of a variety of fermentation equipment, so that the design of tight structure, there is sufficient strength and service life, and strive to equipment less internal Accessories, smooth surface, note that there must be a good gas contact and steam stove vapor mixing performance, So that the material transfer, gas exchange effectively. There is sufficient heat exchange area to ensure that the fermentation can be carried out at the most appropriate temperature. Pay attention to the sealing performance of equipment to ensure sterilization.
The main components
Tank: mainly used to cultivate a variety of fermentation bacteria, better sealing (to prevent bacterial contamination).
The tank has a stirring pulp, for the fermentation process of constant stirring, the bottom of the ventilation Sparger, used to pass the growth of bacteria required for air or oxygen, the top of the tank control sensor, the most commonly used PH electrode and DO electrode, used to monitor the fermentation process of fermentation pH and DO changes in the controller, used to display and control fermentation conditions and so on.
1.The machine WST Series Small fermenter ( seed tank,crystallizing tank) is widely applied in pharmacy, fine chemical engineering andbiological engineering industries. The tank body has interlayer andheat-insulating layer ( for heating, cooling or heat insulating) The tankbody,upper and lower closure heads(or taper) all adopt spinning R-angleprocessing. The internal wall of the tank has got mirror polishing with finishRa≤0.4μm.
2.It has no sanitary dead corner and its wholly-encloseddesign ensures that materials are always mixed and ferment at non-pollutionstate.
3.It is equipped with devices including air respirator,cleaning ball, sanitation inlet , viewing
mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemicalengineering and biological products is aseptic and untainted.
4.Fermentation tank adopts aseptic system which helps avoidmicroorganism pollution in the air and greatly extends quality warranty periodand purity of the products. We specially designed and installed asepticrespiratory air hole or aseptic normal-pressure fermentation system, which canfinish circulating heat-up and cooling through medium heat-up and cooling.Heat preservation adopts polyurethane blister or pearl cotton. External surfaceadopts sand grinding surface polishing treatment. All is in accordance with GMPstandard.
| Nominal capacity (M3) | Diameter cylinder(Dgmm) | High cylinderH(mm) | Heat transfer area M2 | Stir rotational speed r.p.m | Mixing shaft power KW |
| 10 | 1800 | 3800 | 14 | 160-260 | 17-22 |
| 15 | 2000 | 4800 | 18 | 166-260 | 22-30 |
| 20 | 2200 | 5000 | 22 | 180-260 | 30-37 |
| 30 | 2400 | 6600 | 34 | 150-250 | 45-55 |
| 40 | 2600 | 7500 | 45 | 150-250 | 55-75 |
| 50 | 2800 | 8000 | 58 | 150-250 | 55-90 |
| 60 | 3000 | 8300 | 65 | 150-250 | 60-115 |
| 75 | 3200 | 8800 | 84 | 150-250 | 90-145 |
| 100 | 3600 | 9400 | 114 | 150-250 | 120-125 |
| 150 | 4200 | 10800 | 165 | 150-250 | 165-275 |
| 200 | 4600 | 11500 | 220 | 140-240 | 215-360 |
Looking for ideal Stainless Steel Fermenter Tank Series Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Fermenter Tank Series are quality guaranteed. We are China Origin Factory of 30L Fermenter Tank Series. If you have any question, please feel free to contact us.
